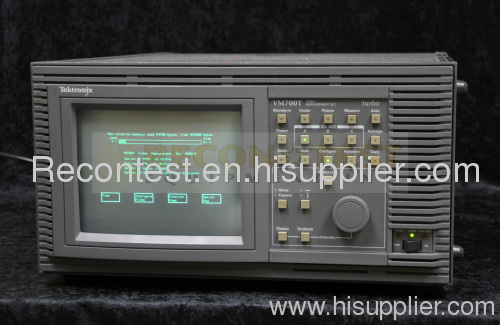

Tektronix VM700T w/ opt's 01, 11, 41 Video Measurement Set NTSC/PAL/6 CH AUDIO


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: VM700T

Condition: Used

Brand Name: Tektronix

Tektronix VM700T w/ opt's 01, 11, 41 Video Measurement Set NTSC/PAL/6 CH AUDIO

The VM700T is a total solution for your baseband video and audiomonitoring and measurement needs.Features such as an extremely fast andfully automatic measurement mode as well as full manual operation provides thefirst-time user, as well as the seasoned professional, an unequaled value fortheir test and measurement investment.

The VM700T Auto mode makes standard video transmitter measurements quicklyand automatically, including those specified in RS-250C/EIA-250C, NTC-7 andRS170A.Both vertical interval and full field measurements can be made andcompared with user-defined limits.A dual limit verification system isemployed to generate a caution or alarm message when either limit is violated. Reports can be generated and printed automatically at operator scheduled timesor triggered from a conditional event.

Measure mode provides virtual real-time graphic displays of measurementresults automatically.Vertical interval or full field measurementsincluding noise spectrum, group delay, K-factor, differential gain anddifferential phase are presented as clever, easy to understand interactivedigital displays.Such displays are indispensable when extremely fastmeasurement update rates (up to 30 times a second) are required to provideinstant feedback of critical adjustments and analysis of signal variations. User-definable limits are visually integrated into graphic display and can beused to trigger a measurement report or a user-definable macro function. Such a function can, for example, dial out through a modem to report measurementresults or control a signal router.A relative to reference mode allowsnormalizing to a signal source or eliminate signal path errors from the desiredmeasurement.Up to two video references can be stored in NVRAM. Additionally, after downloading to a PC through the VM700T FTP driver, the videoreference can be uploaded to another VM700T for reuse.A running averagemode can be used to reduce the effect of noise.When additionalmeasurement data is required, a user can custom configure measurement parametersand report format.

Key Features and Specifications
