Agilent/HP 8594L-041 Portable Spectrum Analyzer, 9kHz to 2.9 GHz 8594L-041 manufacturer from United States Recon Test Equipment Inc

Agilent/HP 8594L-041 Portable Spectrum Analyzer, 9kHz to 2.9 GHz


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: 8594L-041

Condition: Used

Brand Name: Agilent

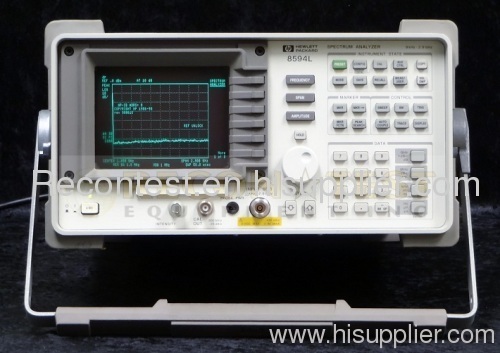

Agilent/HP 8594L -041 Portable Spectrum Analyzer, 9kHz to 2.9 GHz

The Agilent 8594L is a low-cost, but full-featured, frequencyaccurate RF spectrum analyzer designed to meet your general purposemeasurement needs. The easy-to-use interface provides access to morethan 200 built-in functions.

Frequencycounter: Eliminate the need for a separate frequency counter with thebuilt-in frequency counter with ±2.1 kHz accuracy at 1 GHz (±7.6 kHzfrom 0 °C to 50 °C).
Multiple resolution bandwidth filters:Optimize the tradeoffs of speed, sensitivity and the separation ofclosely spaced signals with your choice of 10 resolution bandwidthfilters beginning at 1 kHz.
142 dB amplitude measurement range: Measures signals directly with -112 dBm to +30 dBm amplitude measurement range.
One-buttonmeasurement routines: Save time, setup, and training with one buttonmeasurement routines such as Adjacent Channel Power, signal bandwidthand Third Order Intercept (TOI).
Phase noise of 105 dBc/Hz at 30kHz offset: Uncover small signals close to carriers with an internalphase noise that will not get in your way.
Dual interfaces:Operate remotely and print directly with the optional dual interfacesthat combine either an GPIB or RS-232 port with a parallel (Centronics)port.

Option:
