Agilent/HP 8664A-001-003-004 High-Performance Signal Generator, 3 GHz

Place of Origin:

USA


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: 8664A-001-003-004

Condition: Second Hand

Brand Name: Agilent

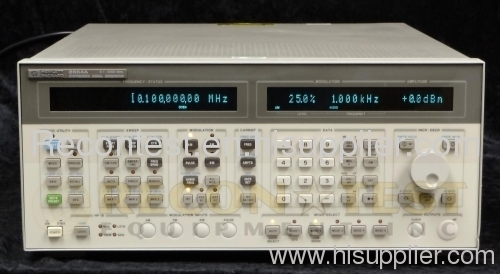

Agilent/HP 8664A 001-003-004 High-Performance Signal Generator, 3 GHz

The Agilent 8664A signal generator is suited for basic receiver testing up to 3.0 GHz. With Option 004 (low-noise enhancement), it can be used for out-of-channel receiver testing or as a clock source where having the lowest phase jitter is important. Radar testing can be done by adding Option 008 (pulse modulation) . Pulse width and delay can be internally adjusted between 50 ns and 999 ns, eliminating the need for an external pulse generator. Standard FM rates of up to 2 MHz and deviations to 10 MHz are suitable for many applications such as high-speed digital communications

Key Features and Specifications

<-140 dBc/Hz typical SSB phase noise at 20 kHz offset at 1 GHz with Option 004
<-100 dBc nonharmonic spurious to 2 GHz reduces error when testing spurious immunity of receivers
AM, FM, and optional pulse modulation
0.01 Hz frequency resolution
On-site repair and calibration

Options:
