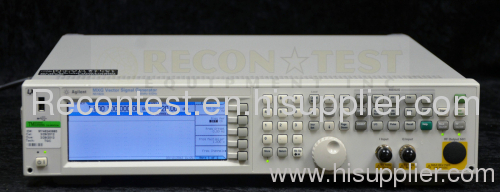

Agilent N5182A/506/1EM/UNZ 250kHz-6GHz MXG RF Signal Generator


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: N5182A/506/1EM/UNZ

Condition: Used

Brand Name: Agilent

Frequency Range: 250kHz-6GHz

Agilent N5182A 250kHz to 6GHz MXG RF Analog Signal Generator with options 506, 1EM, and UNZ

Featuringfast frequency, amplitude, and waveform switching, high power with anelectronic attenuator, and high reliability – all in two rack units(2RU) – Agilent MXG vector is optimized for manufacturing cellularcommunications and wireless connectivity components. Agilent N5182A MXGvector provides better value for your investment by increasingthroughput, improving test yield, maximizing uptime, and saving rackspace. With scalable RF and baseband performance, the Agilent MXG vectoris easily configured to meet your specific test needs.

Withthe industry's best combination of high power and distortionperformance MXG vector signal generators ensure accurate componentdesign verification. When combined with flexible signal creation toolssuch as Signal Studio software, the low ACLR (-73 dBc at +5 dBm for 1carrier W-CDMA) makes the MXG a complete solution for W-CDMA, WiMAX™,and more.

Simplifiedself-maintenance decreases time for repair and performanceverification, keeping downtime to less than 2 hours usingfield-replaceable assemblies.

Unit passes all self-test and is calibrated however has some slight pixelation on the screen.See pictures for details.

Key Features and Specifications

250 kHz to 6 GHz
+23 dBm output power @ 1 GHz
≤ -121 dBc/Hz (typ) phase noise at 1 GHz and 20 kHz offset
≤1.2 ms switching speed in SCPI mode; ≤900 μs simultaneous frequency and amplitude switching in list mode
AM, FM, ØM, and pulse modulation
Digital step and list sweep with simultaneous switching of frequency and power

Options
