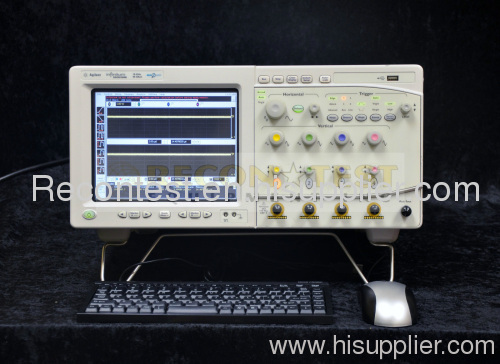

Agilent/HP DSO81004B/001 10GHz 4CH 40GSa/s Oscilloscope

Place of Origin:

USA


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: DSO81004B-001

Condition: Used

Channels: 4

Brand Name: Agilnet-HP

Bandwidth: 10GHz

Agilent/HP DSO81004B/001 10GHz 4CH 40GSa/s Oscilloscope

Superior signal integrity and probing for your application. Agilent Technologies´ Infiniium 80000B Series and InfiniiMax II probing system will lead to improved measurements and increased design margins. The signal integrity advantages of Agilent´s Infiniium 80000B Series Scopes and InfiniiMax Probing System include the industry´s lowest noise floor, lowest jitter measurement floor, lowest trigger jitter, flattest combined frequency response of scope and probe and more. Superior signal integrity maximizes engineer´s design margins by not wasting any measurement accuracy due to the poor noise, jitter or frequency response of the scope or probing system. If you are designing, debugging or validating a serial-data-based design, consider the DSA80000B Digital Signal Analyzer. The DSA80000B is built around an Infiniium DSO80000B Series oscilloscope and the InfiniiMax probing system, to provide critical capabilities for achieving accurate and repeatable measurements. The oscilloscope includes as standard the option 001 memory, the E2688A high-speed serial data analysis software, and the N5400A EZJIT Plus jitter analysis software at an attractive price.

Key Features and Specifications

10 GHz bandwidth real-time oscilloscope with up to 40 GSa/s sample rate
Up to 2 Mpts MegaZoom deep memory at 40 GSa/s sample rates and 64 Mpts MegaZoom deep memory at 4 GSa/s, after-purchase memory upgrade available
System bandwidth of 10 GHz with InfiniiMax II 1168A probing system
Industry's lowest noise floor: 294 uV @ 5 mV/div
Trigger jitter less than 500 fs rms
Industry's largest sets of software applications
XGA touch screen display with 256 level intensity grading
Fully upgradeable bandwidth Details
Unrivaled InfiniiMax probing accessories support browsing, solder-in, socketed, and SMA use models

Options Installed:
