Agilent/HP DSO9064A Oscilloscope: 600 MHz, 4 Analog Channels DSO9064A manufacturer from United States Recon Test Equipment Inc

Agilent/HP DSO9064A Oscilloscope: 600 MHz, 4 Analog Channels


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: DSO9064A

Condition: Used

Brand Name: Agilent/HP

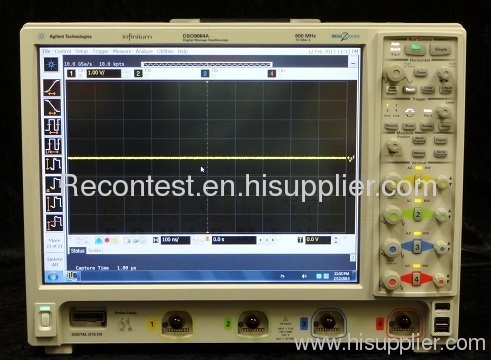

Agilent/HP DSO9064A Oscilloscope: 600 MHz, 4 Analog Channels

Agilent's Infiniium DSO9064A, equipped with a 15" XGA display, comes in apackage that is just 9" (23 cm) deep and weighs only 26 (11.8 kg)pounds to preserve your limited bench space. This scope is engineered togive you the broadest measurement capability available to meet yourneeds both today and in the future. Add 16 integrated digital channelswith the MSO9064A.Take advantage of optional integrated protocol viewersto quickly isolate physical layer issues causing errors. Customize yourtool set with our debug and compliance packages to tailor the scope toyour needs.

Key Features & Specifications

Engineered for the broadest measurement capability

600 MHz bandwidth across all 4 analog channels
10 GSa/s max. sample rate
Standard 20 Mpts per channel memory, upgradeable to 1 Gpts

Get three instruments in one

Scope: The powerful features of our Infiniium Series oscilloscopeswith InfiniiScan advanced triggering coupled with superiorspecifications give you precise signal representation
Logic Analyzer: Add 16 integrated, deep-memory digital channels to seecritical data values and timing relationships. Choose MSO9064A
Protocol analyzer: Choose integrated protocol viewers to quickly drilldown into packets and time correlate between protocol and physicallayers.
