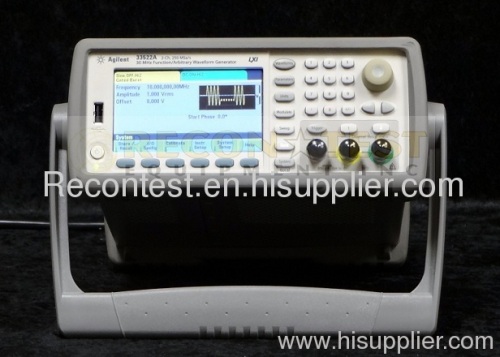

Agilent 33522A-002-400 Function / Arbitrary Waveform Generator, 30 MHz


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: 33522A-002-400

Condition: Used

Brand Name: Agilent

Used Agilent-HP 33522A-002-400 2-channel 30 MHz function / arbitrary waveform generator.

Agilent 33522A-002-400 Function / Arbitrary Waveform Generator, 30 MHz.

The Agilent 33522A is a 2-channel 30 MHz function / arbitrary waveform generator. The 33522A offers the highest signal fidelity and implements abreakthrough technology that provides you with the ability to generatemore accurate arbitrary waveforms. With 10x better jitter than anythingin its class, it offers unparalleled control of signal frequency foryour most challenging measurements.

Unique to the 33522A model is a flexible, dual-channel mode withfrequency and amplitude coupling, differential channels, and combinedoutput channels. This functionality is particularly useful inapplications where testing a device relies on the timing and interactionof two distinct signals to operate properly, such as a heart pacemaker.

Specifications

Dual-Channel Capability

Frequency and amplitude coupling, differential or combined outputs

Waveform Generation

30 MHz, dual-channel mode, sine, square, pulse bandwidth cover more applications
< 40 ps jitter and less than .04% total harmonic distortion for more precise signals
250 MSa/s, 16-bit sampling rate for higher time resolution arbitrary waveforms
True point-by-point arbitrary waveforms for more accurate representation of user-defined signals

Instrument Features

16 MSa/channel arbitrary waveform memory option
Large, color, graphical display for intuitive operation
TCXO timebase standard, OCXO optional for ultra-high stability
USB and LAN (LXI-C) standard for easy utilization and connecting and GPIB option

Options:

002 - 16MSa Arb memory
400 - Add GPIB Interface
