Agilent 8753E-006-010 RF Network Analyzer, 30 kHz to 6 GHz


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: 8753E

Condition: Used

Brand Name: Agilent

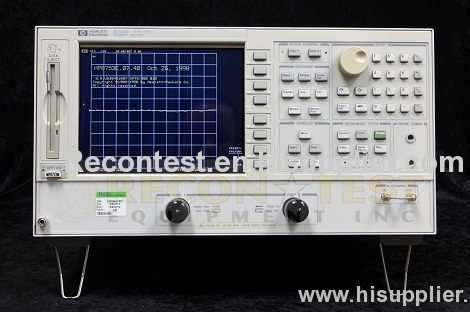

Agilent 8753E-006-010 RF Network Analyzer, 30 kHz to 6 GHz

The 8753E RF vector network analyzer provides allthe performance and productivity features to simplify and speed yourcomponent measurements in the 30 kHz to 6 GHz frequency range.

Itsnew processor makes measurement and data-transfer speeds up to seventimes faster than the previous model (8753D or 8753C). Overallthroughput is enhanced by new features such as simultaneous fourparameter display and adapter-removal calibration. An integrated,synthesized source provides up to 10 mW of output power (100 mW forOption 011), 1 Hz frequency resolution, and linear-frequency,log-frequency, list frequency, CW, and power sweep types. Three tunedreceivers allow independent power measurements or simultaneous ratiomeasurements over a wide dynamic range of 105 dB at 6 GHz (with Option006 frequency extension) or 110 dB at 3 GHz (standard).

Theintegrated test set allows you to measure transmission and reflectioncharacteristics of a device to 6 GHz, without a frequency doubler. The8753E network analyzer features two independent measurement channels.You can choose to display any combination of reflection and transmissionparameters, in magnitude, phase, group-delay, Smith-chart, polar, SWR,or time-domain formats. Soft-keys let you quickly access measurementfunctions, and you can view results in overlay or split-screen format onthe LCD color display.

Frequency range from 30 kHz to 6 GHz.
Built-inS-parameter test set provides complete forward and reversemeasurements, allowing you to characterize your component with a singleconnection.
50 and 75-ohm solutions.
Superb accuracy.Comprehensive calibration guarantees accurate measurements. TRL/LRMmake calibration in noncoaxial environments easier and more convenient.
Mixer testing. Quickly and easily characterize frequency translating devices such as mixers.
Built-in 3.5 inch floppy disk drive provides convenient storage of instrument states and data.
Paralleland serial ports provide interfaces to popular printers and plotters.The parallel port can also be used as a general I/O bus, with usercontrollable TTL inputs and outputs. Users can also connect a DINkeyboard to speed up entry of titles, labels, or file names, and forremote front panel operation.

Options:

006 -6 GHz Frequency Extension

010 - Time Domain Capability
