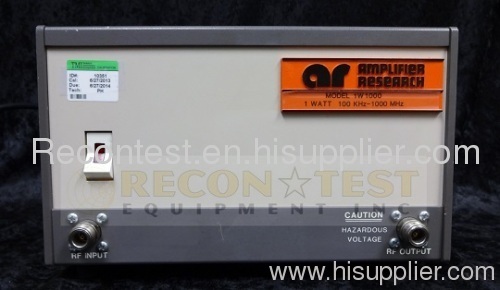

Amplifier Research 1W1000 Amplifier, 100 kHz - 1000 MHz, 1 W

The Amplifier Research 1W1000 Amplifier is a solid-state, self contained, air cooled, broadband amplifier designed for applications requireing instantaneous bandwidth and high gain. The AR 1W1000, when used with an RF sweep generator, will provide a minimum of 1 watt of swept power. The Amplifier Research 1W1000 provides readily available RF power for typical applications such as RF susceptibility testing, antenna and component testing, watt meter calibration and as a driver for frequency multipliers and high power amplifiers.

Specifications of the AR 1W1000 Amplifier include:

    Frequency range: 100 kHz to 1 GHz
    Power output: to 1W CW, up to 2W (max.)
    30 dB gain (minimum)
    Flatness: Â±0.5 dB typical, Â±1.0 dB maximum
    Harmonic distortion: not less than 20 dBc below fundamental at 1.0 W output
    50 Ohm impedance
    N(f) connectors, input/output
    115/230 Vac; 50/60 Hz operation
