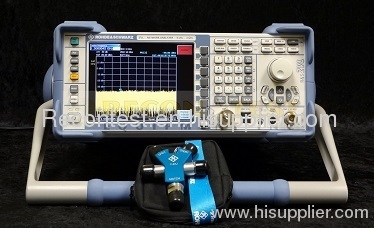

Network analyzer plus options for spectrum analysis and absolutepower measurements in one extremely light, compact, instrument with afrequency range from 9 kHz to 3 GHz.

Specifications

   The price of a low cost instrument, the features and performance of amiddle class instrument, the weight and form of portable instrument
    Addresses the entire market for design, production, service and installation
    Universal RF analysis. The most important instruments in one box:
        bidirectional 2-port vector network analyzer to characterize all 4 S-parameters
        optional spectrum analyzer
        optional power meter (with an R&S NRP power sensor)
    Measurement of S-parameters, impedance, admittance and stability
   Measurement output as Smith chart, inverted Smith chart, magnitude andphase, polar diagram, real / imaginary, group delay, VSWR
    Very high number of traces and channels, overlay display of traces and different channels in a single diagram
    Evaluation of traces within up to 10 ranges: max, min, rms, mean, std deviation, electrical length, phase delay
    Evaluation of band pass filters in terms of center frequency, bandwidth, quality factor, attenuation
   Intuitive user interface for hard and soft key or mouse control..Dialogues and wizards for more complex tasks guide through themeasurement. A context sensitive on-line help function explains the usedfunctions in detail and provides the associated remote commands foreasy programming. Undo and redo functions. Operation from remotelocations via remote desktop function. Operating System Windows XP
   Easy export of the test setups, measurement results or screen shots tothe internal flash disk or to an USB stick.Export or import ofmeasurement data in ASCII or Touchstone format. Remote control via100/10 base T-LAN interface or optional GPIB interface
    Fully portable; weighs less than 7 kg, optional battery power

Option:

Purchase Includes:
