Rohde & Schwarz AMIQ04 -B1-B3-K11 Modulation Waveform Generator

inquire
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: AMIQ04 -B1-B3-K11
Condition: Used
Brand Name: Rohde & schwarz

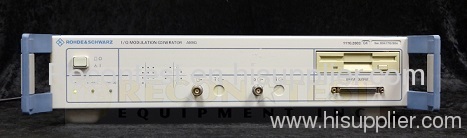

Rohde & Schwarz AMIQ04 -B1-B3-K11 Modulation Waveform Generator

The AMIQ04 is a dual channel modulation generator engineered for use asan I/Q source for use with complex communication systems. It isprogrammed and set with WinIQSIM or can be operated from an SMIQ seriessignal generator. Each channel of the AMIQ04 can store up to 16,000,000samples. Sequences of sufficient length can therefore be generated atvery high symbol rates. The R&S AMIQ04 also features clockfrequencies of up to 100 Msamples/s and and a high amplitude resolutionof 14 bit at the analog signal output and up to 16 bit at the digitalsignal output. Unlike typical dual channel ARB generators, the AMIQ04has automatic amplitude/offset alignment as well as fine adjustment ofthe skew, which provides excellent symmetry of the two channels,minimizing the error vector.

Other features and specifications include:
  • 14-bit resolution
  • Excellent ACP
  • 100 MHz sample rate
  • Fine adjustment of I/Q skew
  • 78 dB ACP dynamic range (typical of 3GPP FDD)
  • Integrated hard disk and floppy drive
  • BER Measurement (w/ option B1)
  • 4,000,000/16,000,000 sample memory depth
  • Generation of broadband digital communication signals (WCDMA, HiperLAN2, IEEE 802.11a)
  • Downloading of calculated waveforms and signals also from integratedfloppy disk drive
  • Auto-alignment and additional user correction of amplitude and offset
  • Wide dynamic range through the use of 14-bit D/A converter, ideal for multicarrier applications
Options:
B1 - BER Measurement
B3 - 16 bit Digital Outputs
K11 - S-95
bigPhoto
 Ms. Louis Amabile

Tel: 1-866-855-0960
Contact to this supplier
