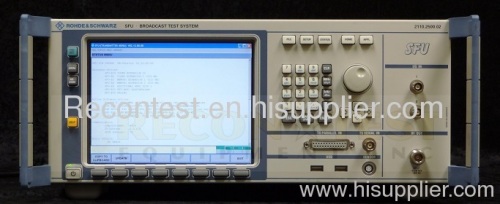

Rohde & Schwarz SFU Broadcast Test System, Loaded with Options

Rohde & Schwarz SFU Broadcast Test System with options B10, B2,B3, B4, B6, B11, B30 & K1, K15, K20, K21, K22, K30, K35, K27, K40,K41, K42, K43, K60, K80, K191, K193, K199, K354, & DV-DVBH

TheR&S SFU is the all-in-one solution for broadcast and mobile TVstandards. It has been designed as a platform for various applicationsand is open for future options. It provides multiple instrumentfunctionality in a cabinet of only four height units and offersunrivaled RF and baseband characteristics.

Due to its modular design,the R&S SFU can be optimally adapted to the requirements ofdifferent applications. It is an ideal research and development tool formaking improvements to introduced standards and for generating newstandard signals. Applications that previously required many differentinstruments are now fully covered by the R&S SFU. The modern,intuitive concept of the R&S SFU ensures fast and easy operation.

    ATV and DTV multistandard broadcast test platform
    Output frequency from 100 kHz to 3 GHz
    Generation of internal noise and interferer signals
    Fully digital baseband signal processing
    Upgradeability to multifunctional broadcast test system
    Easy installation of most options at customer site
    8.4" color display with 1024 × 768 pixels (XVGA format)
    Intuitive user interface with Windows XP Embedded
    Context-sensitive help system
    User-definable favorites for fast access
    I/Q modulator with 180 MHz RF bandwidth
    Very low SSB phase noise of typ. –135 dBc at 1 GHz (20 kHz carrier offset, 1 Hz measurement bandwidth)
    High optional output power of up to +19 dBm (PEP), overrange +26 dBm
    High-stability reference oscillator as standard
    Multistandard platform that supports expansions
    Transmission channel simulations: Noise, Fading and Interference
    TS baseband generator and recorder with universal coder for realtime signal generation
    TRP baseband player for realtime signal generation
    Video generator for realtime signal generation
    Arbitrary waveform generator with 128 Msample, supported by R&S WinIQSIM™ software
    Internal hard disk as standard for storing waveforms and modulation data
    Wear-free electronic attenuator provides large dynamic range in all supported frequency bands
    Minimum space requirements: generator and test transmitter are accommodated in one instrument of only four height units
    Remote control via GPIB and LAN
    User-friendly remote access by Virtual Network Computing (VNC) or Remote Desktop
    USB connectors for keyboard, mouse and USB memory module

Options:

    B10 - Coder extension 10
    B2 - Coder extension 2 (256 MB)
    B3 - Memory extension 1 (512 MB)
    B4 - Memory extension 2 (256 MB)
    B6 - Additional Hard Disk 1
    B11 - ETI-HDB3 Adapterboard
    B30 - Fading
    K1 - DVB-T
    K15 - CMMB
    K20 - MPEG Generator
    K21 - MPEG REC.
    K22 TRP-PLAYER
    K30 - ENH. FADING
    K35 - ARB GENERATOR
    K37 - INTERFERER MANAGEMENT
    K40 - NOISE
    K41 - PHASE NOISE
    K42 - IMPULSIVE NOISE
    K43 - MULTI_NOISE_USE
    K60 - BER
    K80 - EXTENDED_IQ_INPUT
    K191 - ATV-D/K
    K193 - ATV-M/N
    K199 - MULTI ATV PREDEF.
    K354 - DTV INTERFERERS
    DV-DVBH
